Franken Saw

by John W. Nixon on August 30 2006 03:00

Be the first to rate this post

  • Currently 0/5 Stars.
  • 1
  • 2
  • 3
  • 4
  • 5

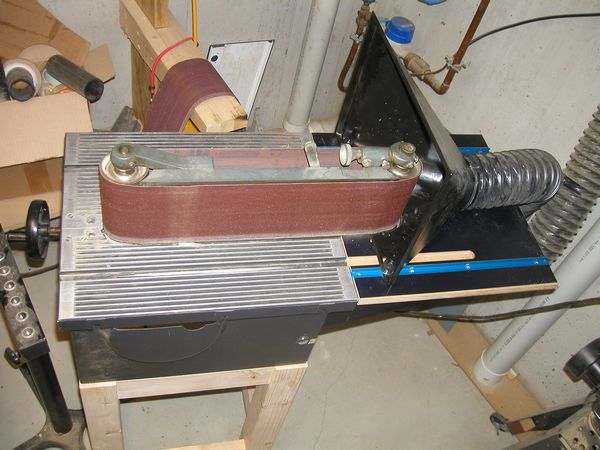

Project Picture
See what others have voted on Vote for it! No Video

This project does not have a Video

You can cast your vote to have a video created for this project.

See what others have voted on Vote for it! No File Downloads

This project does not have any File Downloads

You can cast your vote to have Files created for this project.

Project Description

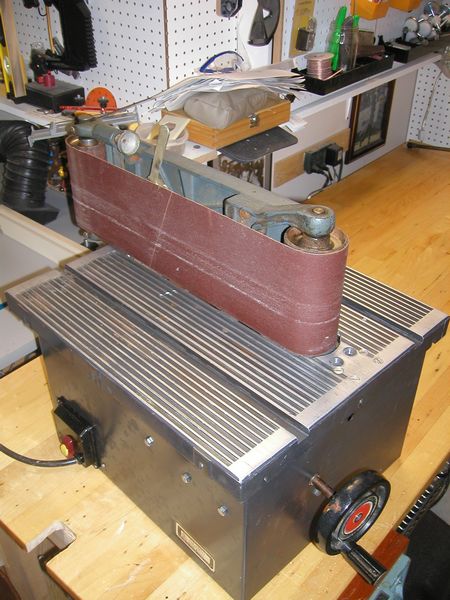

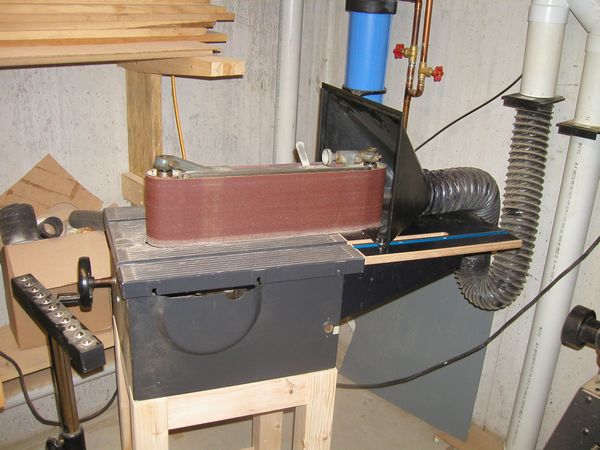

What do you get when you cross an old belt sander and a tablesaw - The 'FrankenSander'! I picked up this 50's belt sander from an older woman who had a basement full of tools from a husband who had passed. Around the same time, I garbage-picked a tablesaw from a guy a couple of houses down. Before putting it out for the trash, he cut the cord off the saw, left out a leg from the stand, and didn't include the arbor nut. So he obviously didn't want anyone to use it as a tablesaw after that. I can take a hint, so I decided to use it as a mount for my new horizontal belt sander.

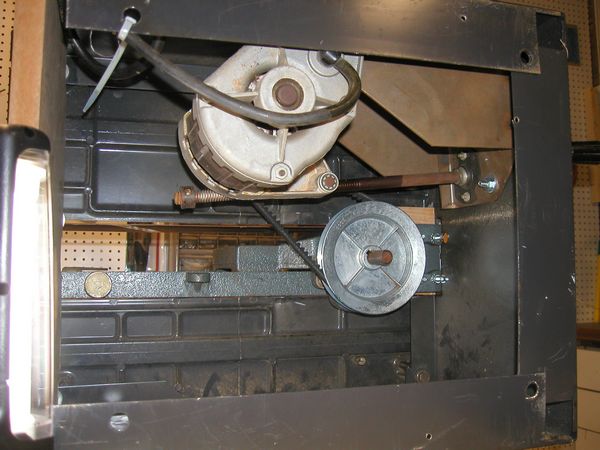

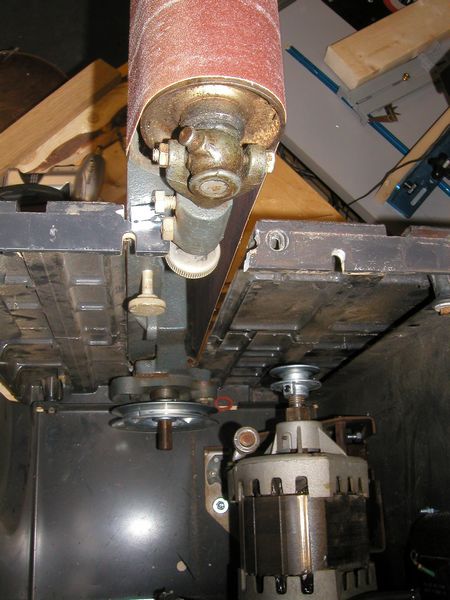

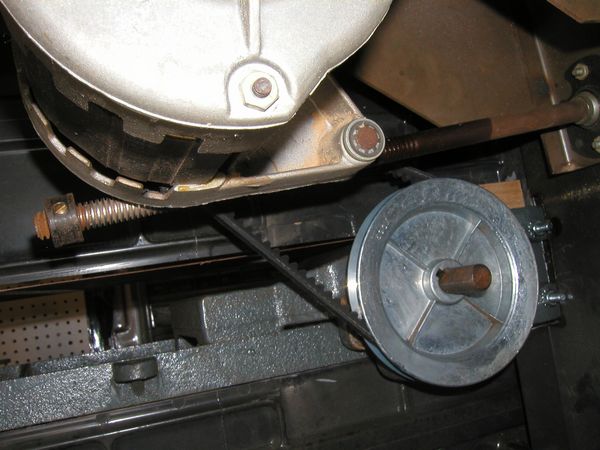

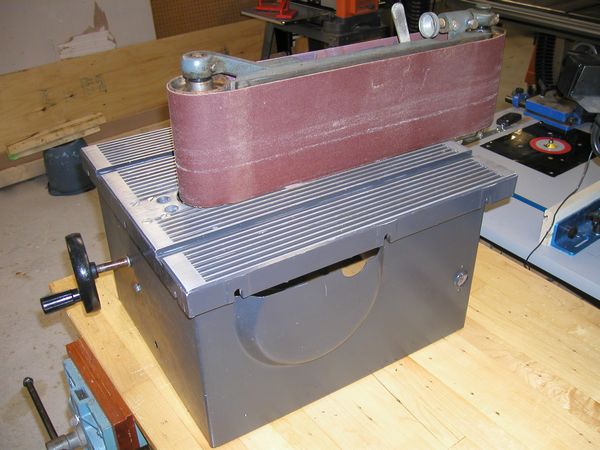

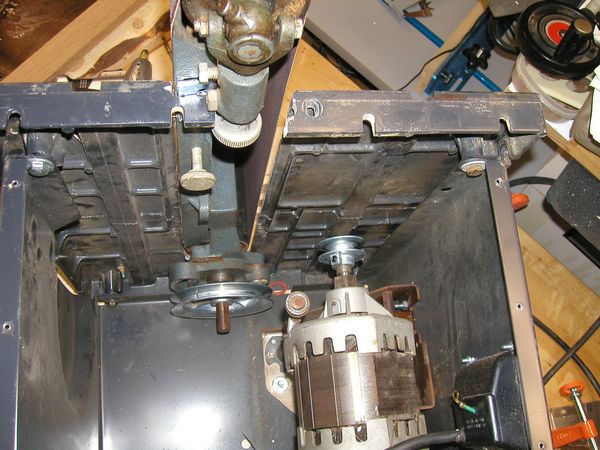

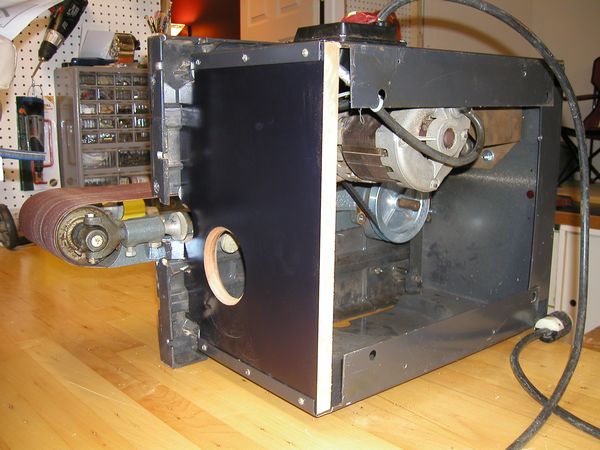

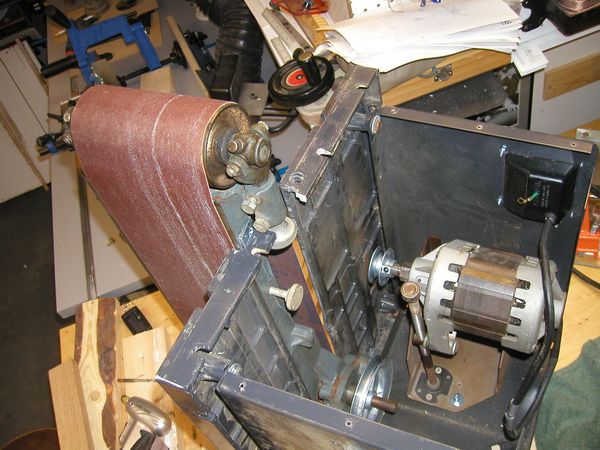

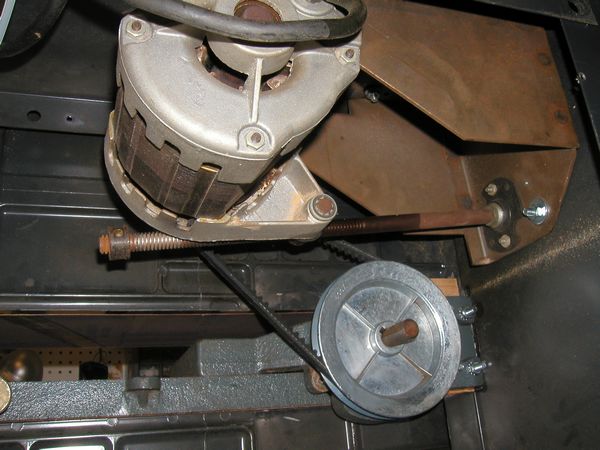

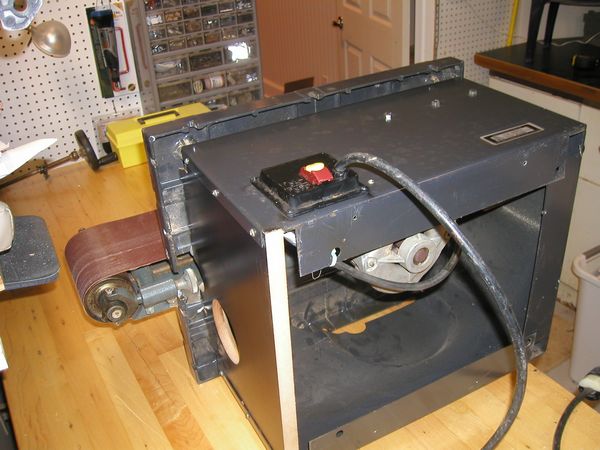

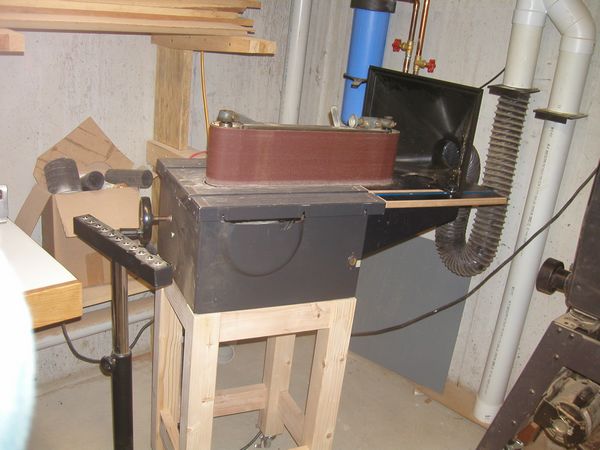

Now, onto the collision - one neat element to this is how I used the tablesaw motor and trunnion. Normally, the tablesaw motor moves up and down when you crank the handle on the front. I remounted the motor so that the crank now moves the motor away from the belt sander pulley to tension the belt. After figuring out how I was going to mount the motor, it was a matter of mounting the belt sander to the tablesaw carcass. A picture from the bottom shows how I mounted the belt sander to the tablesaw. It was my first time routing aluminum - it went better than I imagined - it's very soft.

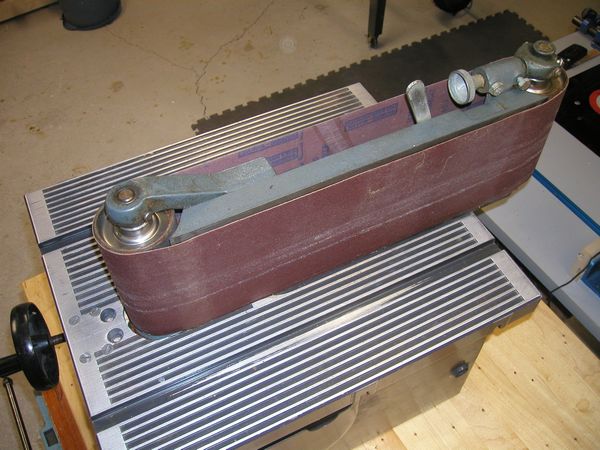

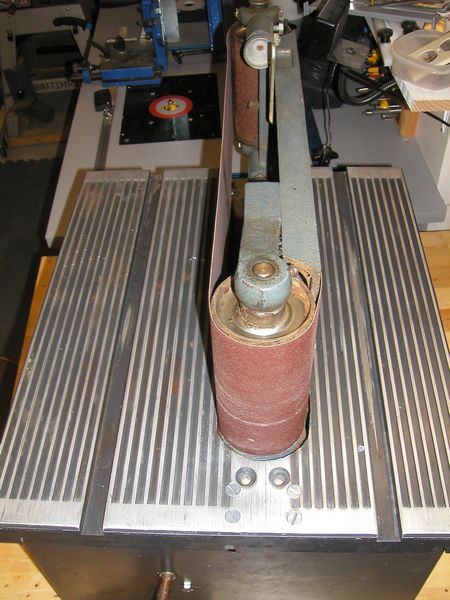

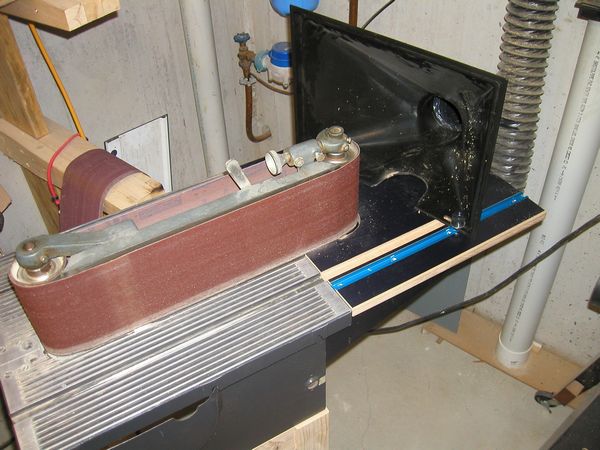

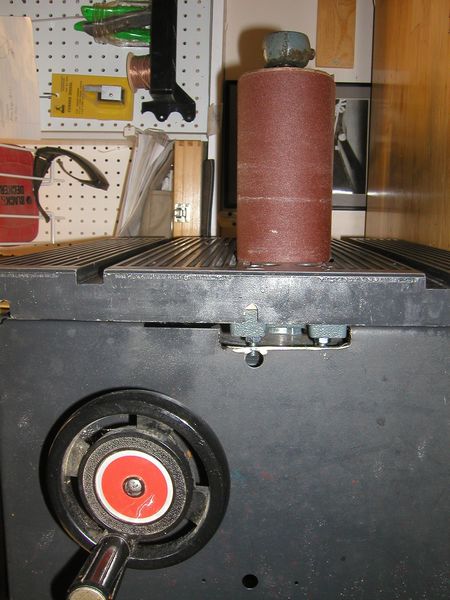

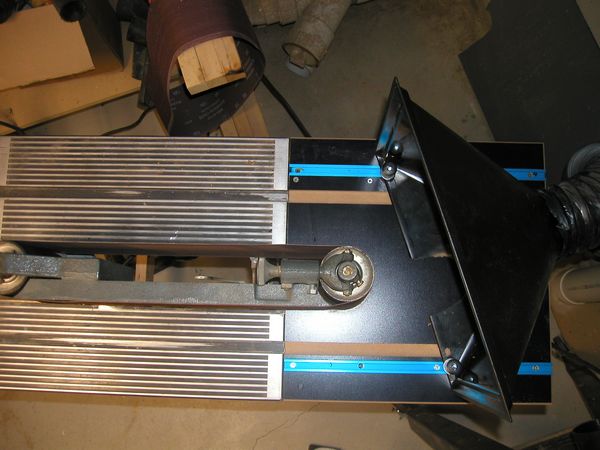

The sander gets a lot of use in my shop. It has about 18 inches of flat surface and access to the rounding drums for sanding inside curves.
