CMS Dust Collection

by John W. Nixon on February 27 2006 03:00

Be the first to rate this post

Currently 0/5 Stars.
1
2
3
4
5

This project does not have a Video

You can cast your vote to have a video created for this project.

View the Photo Gallery

Check out the pictures of this project.

This project does not have any File Downloads

You can cast your vote to have Files created for this project.

Project Description

Tags: gallery

Project | In The Shop

Comments

2/17/2009 3:47:02 AM

John W. Nixon

Posted by:

Reply to comment from Paul who wrote:
Hello,

How well does this work for you? Is that a shop vacuum accessory? Do you use it in conjun...

Hi Paul,

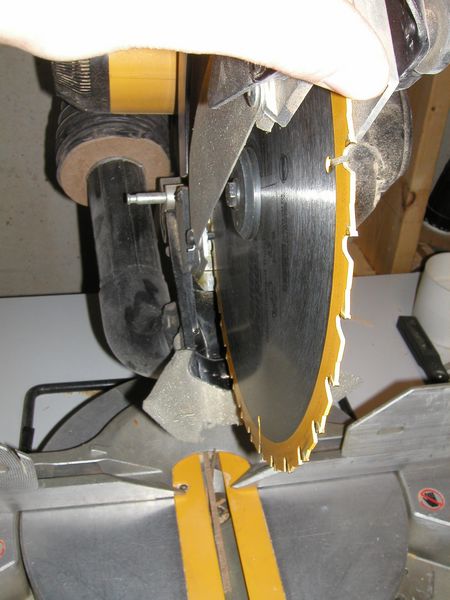

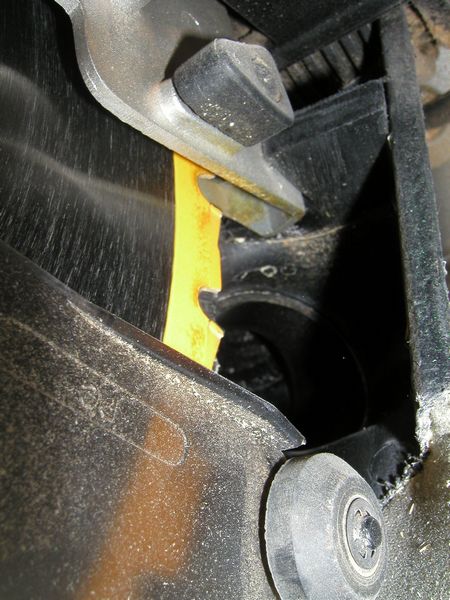

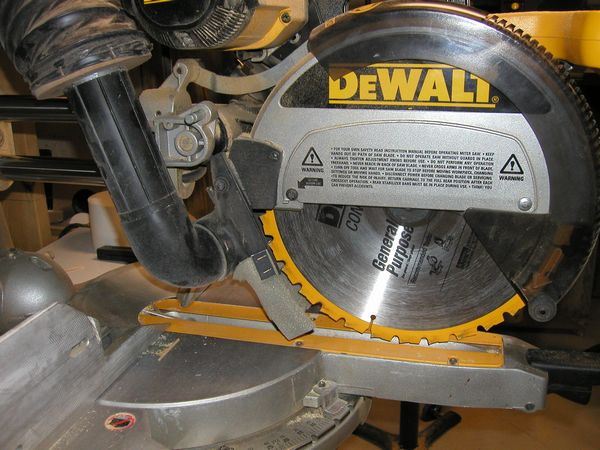

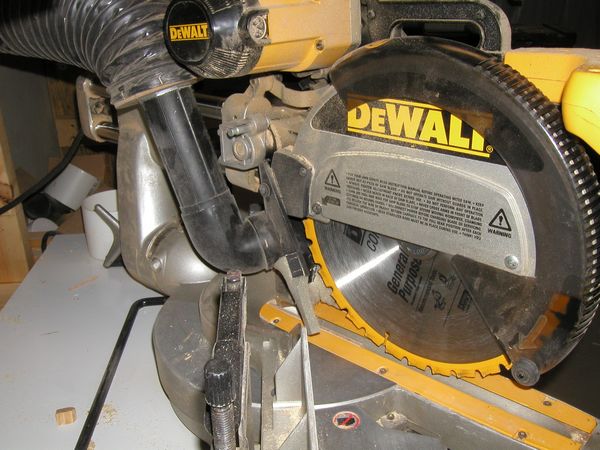

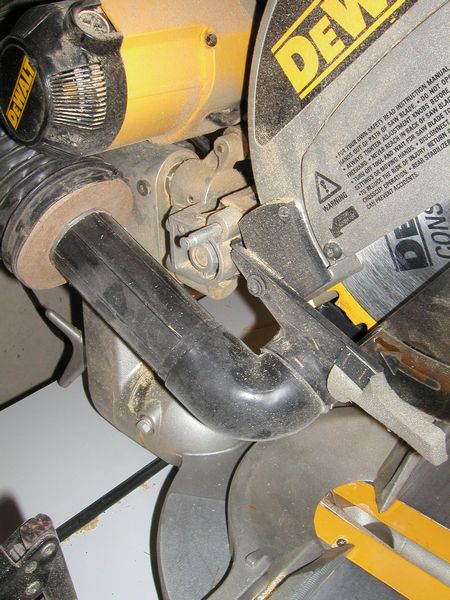

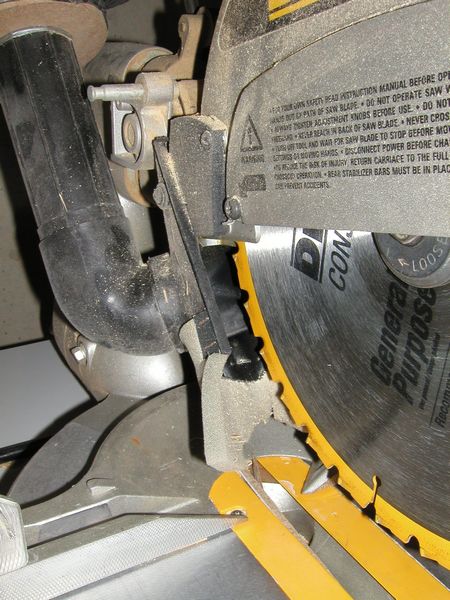

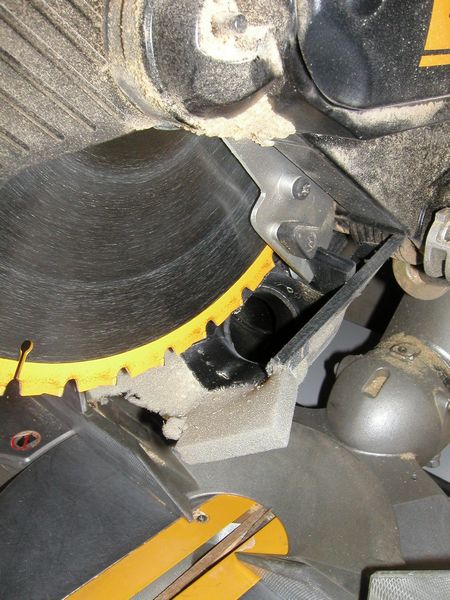

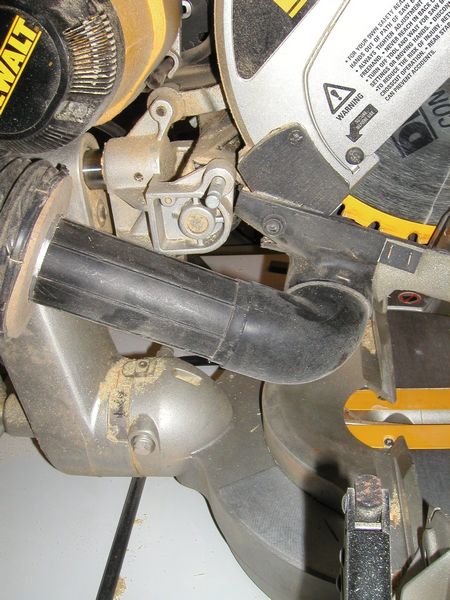

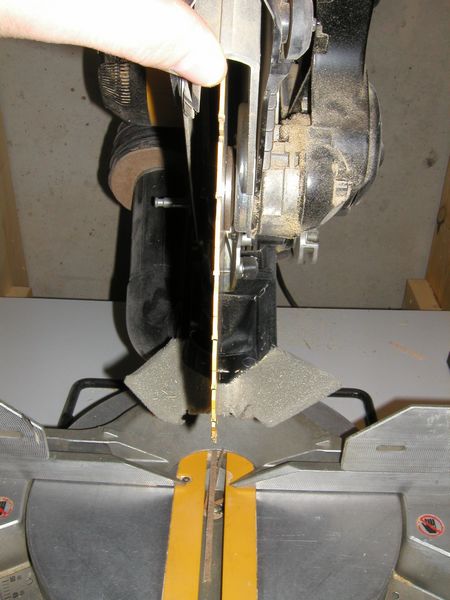

This method works very well. The concept is simple - you need to put the collection mouth directly where the sawdust is generated. The blade creates and ejects the sawdust right out the back of the blade, so it make sense to position the collector there. The collector is made from shop vac parts and bolts onto the saw in place of the original 1-1/4 hose outlet. You can see in the first photo that the collector mouth is connected to a 4 inch flex hose about 6 inches up. I have this connected to my central dust collector, and the performance is excellent.

The only problem with a collector this size is that you sacrifice some range in beveling. I don't have any problem with miter cuts - I retain the full capability of the saw, but when I tilt the head for beveling, I don't have the full range.
